Shasan Piping Solution is snappiest making Manufacturers of Carbon Steel 45 Degree Elbow stayed aware of by Saudi Aramco. We are most crucial assessor of Shasan Piping Solution 45 Degree Line Elbow.Shasan Piping Solution is most certain exporter of Incoloy 800 45 Degree Decreasing Elbow, Hastelloy 45 Degree Weld Elbow in various sizes. Buy from our set up stock Stainless Steel 304l 45 Degree Elbow, most ideal condition, cost in India, notice our expense of Inconel 600 45 Degree Elbow including Short Sweep Aluminum Elbow, Stainless Steel 317 Short Span Elbow and Copper Nickel Cu-ni 70/30 Short Range Elbow. We have sorted out deftly of ELBOW Short Range BW Timetable 120 ASTM A234 GR.WPB, ASME B16.9.

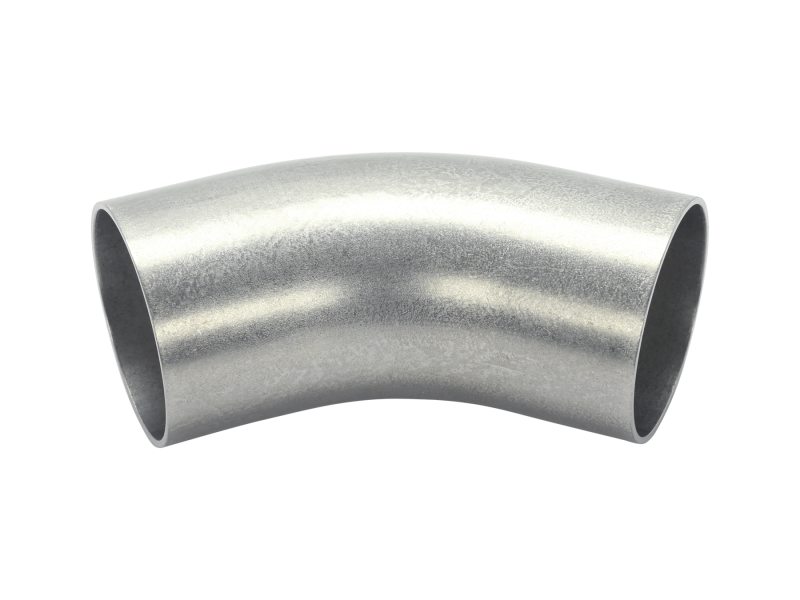

A Stainless Steel 45 degree Elbow, regardless called a "45 breeze" or "45 ell", is regularly used in water-deftly working circumstances, food, substance and electronic present day pipeline affiliations, cooling pipelines, improvement and nursery creation, and sun controlled energy office including. Elbows are in like manner hinted by length. The level of state of a long-make (LR) elbow is 1.5 events the line pack over, despite a short-clear (SR) elbow has an expansion commensurate to the line broadness. Short elbows, totally open, are regularly used in compacted plans, and in truly close zones.

45-degree-elbow-flanges-manufacturers-exporters-suppliers-stockists

45 Degree Elbow Manufacturers, 45 Degree Elbow Suppliers, 45 Degree Elbow Stockists, 45 Degree Elbow Exporters

45 Degree Elbow Manufacturers in India, 45 Degree Elbow Suppliers in India, 45 Degree Elbow Stockists in India, 45 Degree Elbow Exporters in India

If you are looking for best expense of ASME B16.9 45 Degree Elbow or ANSI Short Sweep Elbow, Short Span Copper Elbow near you with briefest time transport or free occasion of ASTM A234 WP91 Combination Steel Short Range Elbow. Call us for Most recent and Refreshed respect Rundown of Duplex Steel Uns S31803 Short Span Elbow and SS 304 45 Degree Short Range Elbow.

45 Degree Elbow Manufacturers in Mumbai, 45 Degree Elbow Suppliers in Mumbai, 45 Degree Elbow Stockists in Mumbai, 45 Degree Elbow Exporters in Mumbai

Our 45° Short Sweep Elbow are accessible to our enormous clients in different level of breadths, divider thicknesses and sizes in changed headway other than at moderate rates. By then, we offer different sorts of these fitting, for instance, ASME B16.9 SR Weld Elbow, Inconel 45 Degree Elbow, Carbon Steel 45 Degree Elbow, Combination Steel 45 Degree Short Sweep Elbow.

Specification of 45 Degree Elbow

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	45 Degree Elbow
45 Degree Weld Elbow Pipe Fittings size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
45 Degree Elbow Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
45 Degree Pipe Elbow Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
45 Degree Weld Elbow Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
45 Degree Reducing Elbow Type	DN15-DN1200
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
45 Degree Elbow Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
45 Degree Weld Elbow Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 45 Degree Elbow	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 45 Degree Elbow are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 45 Degree Elbow have a thicker wall for higher-pressure applications.

Material of 45 Degree Elbow

Carbon Steel 45 Degree Elbow	ASTM A234 WPB 45 Degree Elbow ASTM A420 WPL6 45 Degree Pipe Elbow WPHY 42 45 Degree Reducing Elbow WPHY 52 45 Degree Elbow WPHY 60 45 Degree Weld Elbow WPHY 65 45 Degree Weld Elbow WPHY 70 45 Degree Pipe Elbow
Stainless Steel 45 Degree Elbow	ASTM A403 WP304 45 Degree Pipe Elbow ASTM A403 WP304L 45 Degree Weld Elbow ASTM A403 WP316 45 Degree Elbow ASTM A403 WP316L 45 Degree Pipe Elbow ASTM A403 WP317 45 Degree Weld Elbow ASTM A403 WP317L 45 Degree Pipe Elbow ASTM A403 WP321 45 Degree Pipe Elbow ASTM A403 WP321H 45 Degree Weld Elbow ASTM A403 WP347 45 Degree Elbow ASTM A403 WP347H 45 Degree Reducing Elbow
Alloy Steel 45 Degree Pipe Elbow	ASTM A234 WP5 45 Degree Weld Elbow ASTM A234 WP9 45 Degree Elbow ASTM A234 WP11 45 Degree Elbow ASTM A234 WP22 45 Degree Weld Elbow ASTM A234 WP91 45 Degree Pipe Elbow
Inconel 45 Degree Weld Elbow	Inconel 600 45 Degree Elbow Inconel 601 45 Degree Pipe Elbow Inconel 625 45 Degree Reducing Elbow Inconel 718 45 Degree Pipe Elbow Inconel x750 45 Degree Elbow
Copper 45 Degree Elbow	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 45 Degree Pipe Elbow	Copper Nickel 90/10 (C70600 ) 45 Degree Pipe Elbow, Cupro Nickel 70/30 (C71500) 45 Degree Elbow, UNS C71640 45 Degree Elbow
Brass 45 Degree Reducing Elbow	3602 / 2604 / H59 / H62 / etc.
Hastelloy 45 Degree Weld Elbow	Hastelloy C276 (UNS N10276) 45 Degree Elbow, C22 (UNS N06022) 45 Degree Pipe Elbow, C4 45 Degree Elbow, C2000 45 Degree Weld Elbow, B2 45 Degree Elbow, B3 45 Degree Elbow, X 45 Degree Reducing Elbow
Monel 45 Degree Weld Elbow	Monel 400 (UNS No. N04400) 45 Degree Elbow, Monel 500 (UNS No. N05500) 45 Degree Weld Elbow
Alloy 20 45 Degree Elbow	Carpenter® 20 Alloy 45 Degree Weld Elbow, Alloy 20Cb-3 45 Degree Pipe Elbow
Aluminium 45 Degree Weld Elbow	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 45 Degree Pipe Elbow	Nickel 200 45 Degree Elbow, Nickel 201 45 Degree Reducing Elbow
Duplex 45 Degree Weld Elbow	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 45 Degree Elbow	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 45 Degree Elbow	Incoloy 800 45 Degree Reducing Elbow, Incoloy 800H 45 Degree Elbow, Incoloy 800HT (UNS N08800) 45 Degree Weld Elbow, Incoloy 825 (UNS N08825) 45 Degree Pipe Elbow
254 Smo 45 Degree Pipe Elbow	SMO 254/6Mo 45 Degree Elbow, UNS S31254 45 Degree Elbow, DIN 1.4547 45 Degree Weld Elbow
Nimonic 45 Degree Weld Elbow	Nimonic 75 45 Degree Elbow, Nimonic 80A 45 Degree Elbow, Nimonic 90 45 Degree Pipe Elbow
Other 45 Degree Reducing Elbow material	Tin bronze 45 Degree Weld Elbow, Alumunum bronze 45 Degree Weld Elbow, Lead bronze 45 Degree Weld Elbow
Titanium 45 Degree Pipe Elbow	ASTM B381 Titanium Gr. 1 45 Degree Pipe Elbow ASTM B381 Titanium Gr. 2 45 Degree Weld Elbow ASTM B381 Titanium Gr. 4 45 Degree Weld Elbow ASTM B381 Titanium Gr. 5 45 Degree Elbow ASTM B381 Titanium Gr. 7 45 Degree Pipe Elbow

Dimensions of 45 Degree Elbow

Nom. Pipe Size	Pipe Sched. or No.	Center- to-end Dimen.	Outside Dia.	Inside Dia.	Wall Thick.	Approx. Weight (lb.)
		F	OD	ID	T
STANDARD WEIGHT
1/2	40	5/8	0.840	0.622	0.109	0.1
3/4	40	7/16	1.050	0.824	0.113	0.1
1	40	7/8	1.315	1.049	0.133	0.2
1 1/4	40	1	1.660	1.380	0.140	0.4
1 1/2	40	1 1/8	1.900	1.610	0.145	0.5
2	40	1 3/8	2.375	2.067	0.154	0.9
2 1/2	40	1 3/4	2.875	2.469	0.203	1.5
3	40	2	3.500	3.068	0.216	2.5
3 1/2	40	2 1/4	4.000	3.548	0.226	3.5
4	40	2 1/2	4.500	4.026	0.237	4.8
5	40	3 1/8	5.563	5.047	0.258	7.8
6	40	3 3/4	6.625	6.065	0.280	12
8	40	5	8.625	7.981	0.322	23
10	40	6 1/4	10.750	10.020	0.365	42
12	–	7 1/2	12.750	12.000	0.375	61
14	30	8 3/4	14.000	13.250	0.375	79
16	30	10	16.000	15.250	0.375	103
18	–	11 1/4	18.000	17.250	0.375	132
20	20	12 1/2	20.000	19.250	0.375	160
22	20	13 1/2	22.000	21.250	0.375	195
24	20	15	24.000	23.250	0.375	238
EXTRA STRONG
Nom. Pipe Size	Pipe Sched. or No.	Center- to-end Dimen.	Outside Dia.	Inside Dia.	Wall Thick.	Approx. Weight (lb.)
		F	OD	ID	T
1/2	80	5/8	0.840	0.546	0.147	0.2
3/4	80	7/16	1.050	0.742	0.154	0.3
1	80	7/8	1.315	0.957	0.179	0.4
1 1/4	80	1	1.660	1.278	0.191	0.5
1 1/2	80	1 1/8	1.900	1.500	0.200	0.6
2	80	1 3/8	2.375	1.939	0.218	1.1
2 1/2	80	1 3/4	2.875	2.323	0.276	2.1
3	80	2	3.500	2.900	0.300	3.5
3 1/2	80	2 1/4	4.000	3.364	0.318	4.8
4	80	2 1/2	4.500	3.826	0.337	6.5
5	80	3 1/8	5.563	4.813	0.375	11
6	80	3 3/4	6.625	5.761	0.432	18
8	80	5	8.625	7.625	0.500	35
10	60	6 1/4	10.750	9.750	0.500	56
12	–	7 1/2	12.750	11.750	0.500	80
14	–	8 3/4	14.000	13.000	0.500	100
16	40	10	16.000	15.000	0.500	131
18	–	11 1/4	18.000	17.000	0.500	172
20	30	12 1/2	20.000	19.000	0.500	210
22	30	13 1/2	22.000	21.000	0.500	259
24	–	15	24.000	23.000	0.500	302
