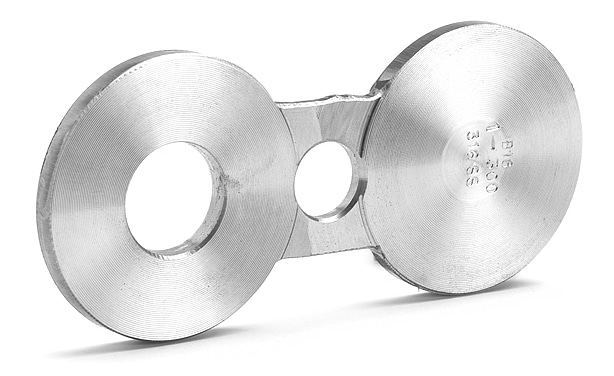

Spectacle blind flanges, ANSI B16.5, are typically used to join and permanently confine pipe systems. Such A steel plate with two precisely sized circles cut out of it is disabled from the outside. A steel component that resembles the nose piece of glasses connects these two rings. Its interior width is the same as a flange, and one of the circles represents a sturdy plate and the other a ring. These blinds are used on systems that need be disconnected from different installations on a regular basis. These spectacle blinds are installed in an open position to allow for possible passage through the pipe. Anticipating that the close-up spectacle shutters will be turned, the pipe is blanked off, and no current is conceivable. We are Best Manufacturers & Suppliers Blind Flanges Manufacturerss in India.

A piping structure can be used to move these blinds into the closed position. This run will go through the connection piece's exhausted opening. It is possible to turn these ASME B16.47 Spectacle Blind Flanges by undoing all of the bolts and removing them halfway. Bolts can be re-assembled and tightened immediately after the blinds are overridden with outdated gaskets. For all of our clients worldwide, Shasan Piping Solution is the most reliable Manufacturers and supplier of these spectacle blinders. Several materials are combined to create these blinds.

Shasan Piping Solution builds these spectacle blinds using only the widely accepted concept of crude components. Prior to sending the materials for manufacture, our experts test them. We have highly skilled and competent specialists who handle the entire production cycle from start to finish while maintaining an eye on value at every turn. A certain percentage of these eyeglass blinds are kept in our incredibly well-equipped stockroom, where they will typically be maintained for an extended period of time and can be utilized in an emergency.

At Shasan Piping Solution, we primarily provide the necessities for our clients. We keep all the guidelines and methods for packing safe. Redesigned packaging might also be used in response to the buyer's need for a more secure delivery of the item. We never cut corners when it comes to the quality of our products; these Spectacle Blinds are packed with premium materials to ensure a trouble-free transit. Each externally impaired blind is carefully packed, and once the blinds are squeezed, the quality team makes sure that every Spectacle Blinds packaging is inspected for quality; if approved, the flanges are shipped out. For the most part, we ship these flanges to different customers located in diverse locations using the greatest transportation administrations regions of the planet on time, as committed by us..

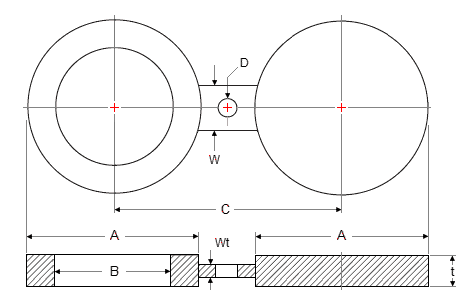

Dimensions of Spectacle Flange

Pressure Class 150

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	45	16	60	3	38
3/4	54	21	70	3	38
1	64	27	80	3	38
1¼	73	42	90	6.4	38
1½	83	48	100	6.4	38
2	102	61	120	6.4	51
2½	107	73	140	6.4	51
3	133	89	150	6.4	64
3½	159	102	175	9.7	64
4	172	114	190	9.7	64
5	194	141	215	9.7	76
6	219	168	240	12.7	76
8	276	219	300	12.7	76
10	337	273	360	15.7	102
12	406	324	430	19.1	102
14	448	356	475	19.1	108
16	511	406	460	22.4	108
18	546	457	580	25.4	114
20	603	508	635	28.4	121
24	714	610	750	31.8	140
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 300

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	38
1¼	79	42	100	6.4	38
1½	92	48	115	6.4	38
2	108	61	125	9.7	51
2½	127	73	150	9.7	51
3	146	89	170	9.7	64
3½	162	102	185	12.7	64
4	178	114	200	12.7	64
5	213	141	235	15.7	76
6	248	168	270	15.7	76
8	305	219	330	22.4	76
10	359	273	385	25.4	102
12	419	324	450	28.4	102
14	483	356	515	31.8	108
16	536	406	570	38.1	108
18	594	457	630	41.1	114
20	651	508	685	44.5	121
24	772	610	810	50.8	140
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 600

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	57
1¼	79	37	100	9.7	57
1½	92	43	115	9.7	67
2	108	55	125	9.7	57
2½	127	67	150	12.7	67
3	146	83	170	12.7	67
3½	159	96	185	15.7	76
4	191	108	215	15.7	76
5	238	135	265	19.1	86
6	264	162	290	22.4	86
8	318	212	350	28.4	95
10	397	265	430	35.1	105
12	454	315	490	41.1	105
14	489	346	525	44.5	114
16	562	397	605	50.8	124
18	610	448	655	53.8	133
20	679	497	725	63.5	133
24	787	597	840	73.2	152
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 900

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	60	16	80	6.4	38
3/4	67	21	90	6.4	41
1	76	27	100	6.4	57
1¼	86	37	110	9.7	57
1½	95	43	125	9.7	67
2	140	55	165	12.7	57
2½	162	67	190	12.7	67
3	165	83	190	15.7	67
4	203	108	235	19.1	76
5	244	135	280	22.4	86
6	286	162	320	25.4	86
8	356	212	395	35.1	95
10	432	265	470	41.1	105
12	495	315	535	47.8	105
14	518	346	560	53.8	114
16	572	397	615	60.5	124
18	635	448	685	66.5	133
20	696	497	750	73.2	133
24	835	597	900	88.9	152
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 1500

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	61	16	80	6.4	38
3/4	67	21	90	9.7	41
1	76	27	100	9.7	64
1¼	86	35	110	9.7	64
1½	95	41	125	12.7	70
2	140	53	165	12.7	70
2½	162	63	190	15.7	76
3	172	78	205	19.1	76
4	206	102	240	22.4	89
5	251	128	290	28.4	89
6	279	154	320	35.1	89
8	349	203	395	41.1	102
10	432	255	480	50.8	114
12	518	303	570	60.5	114
14	575	333	635	66.5	127
16	638	381	705	76.2	133
18	702	429	775	85.9	146
20	752	478	830	95.3	152
24	899	575	990	111.3	178
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 2500

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	67	16	90	9.7	38
3/4	73	21	95	9.7	41
1	83	27	110	9.7	64
1¼	102	35	130	12.7	64
1½	114	41	145	15.7	70
2	143	53	170	15.7	70
2½	165	63	195	19.1	76
3	194	78	230	22.4	76
4	232	102	275	28.4	89
5	276	128	325	35.1	89
6	314	154	370	41.1	89
8	384	198	440	53.8	102
10	473	248	540	66.5	114
12	546	289	620	79.2	114
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
